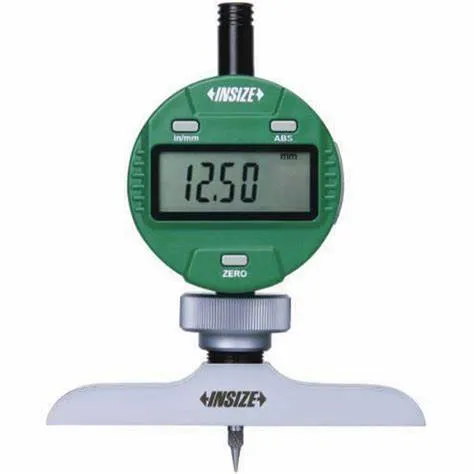

The Insize 2141-202A Digital Depth Gauge is a precision instrument designed for accurately measuring depths up to 300 mm (12 inches). Its wide stainless steel base ensures stability during measurements, making it ideal for applications in machining, quality control, and inspection.

Key Features:

• Measurement Range: 0 to 300 mm (0 to 12 inches)
• Resolution: 0.01 mm (0.0005 inches)
• Accuracy: ±20 μm
• Digital Indicator Stroke: 12.7 mm (0.5 inches)
• Base Dimensions: 101.5 mm x 17 mm
• Functions: On/Off, Zero setting, mm/inch conversion, ABS mode, data preset, and measuring direction change
• Battery: CR2032 with automatic power-off feature
• Construction: Durable stainless steel base

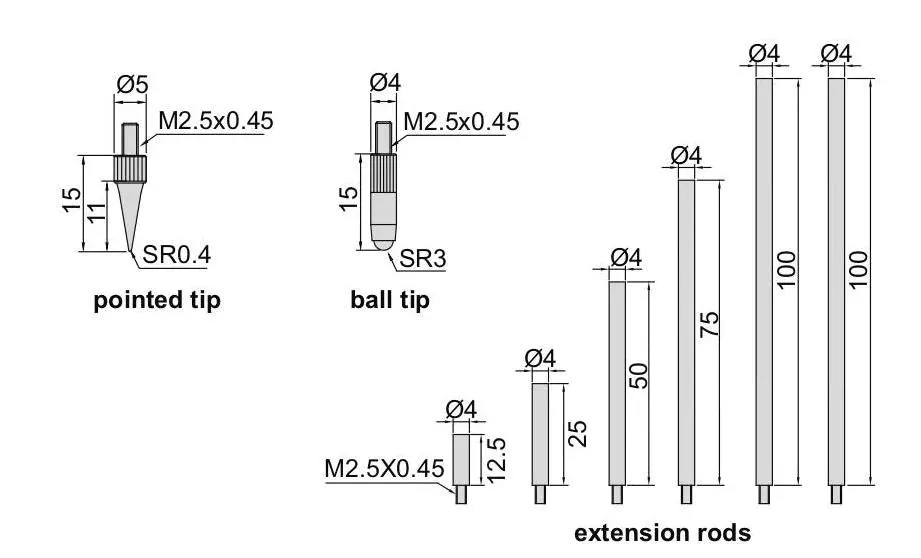

• Accessories: Includes extension rods (12.5 mm, 25 mm, 50 mm, 75 mm, 100 mm x2), pointed and ball tips
• Data Output: Optional data output capability for efficient data management
• Optional Accessories: Data output cables (codes 7315-50M, 7302-50M), granite extension holder (code 2141-10)

Applications:

• Machining: Measuring depths of holes, slots, and recesses during production
• Quality Control: Verifying dimensional tolerances in manufactured components
• Inspection: Accurate depth measurements for maintenance and testing
• Engineering and Tooling: Assisting in design and calibration of precision components
