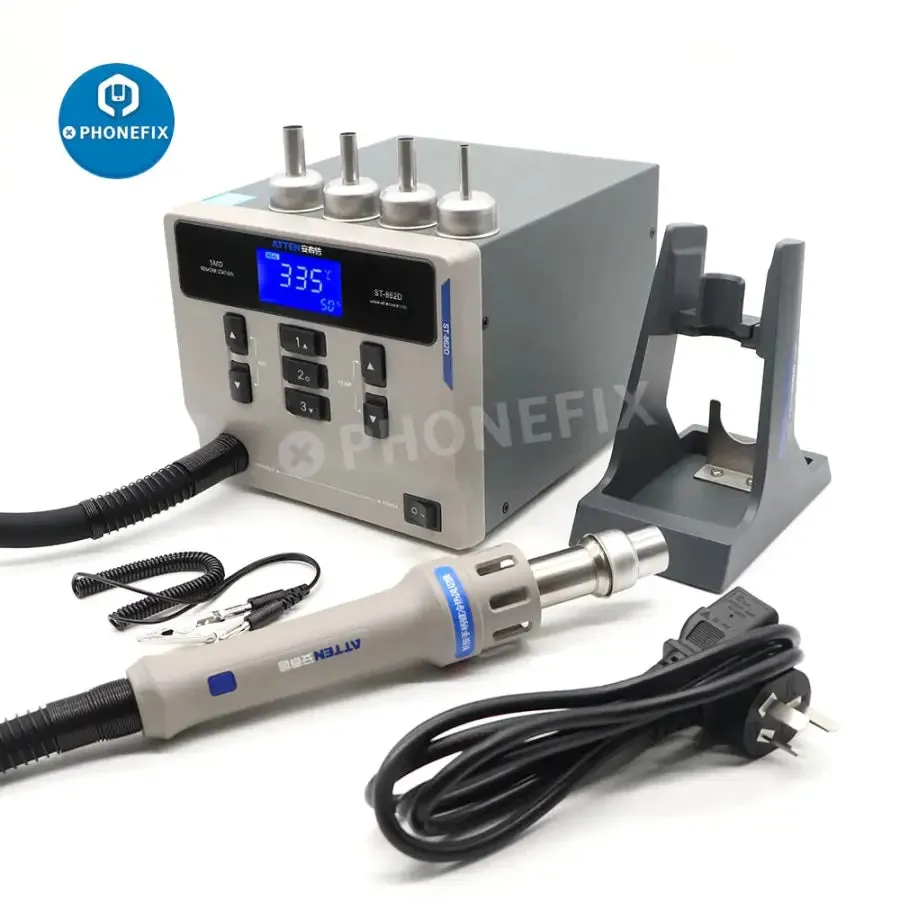

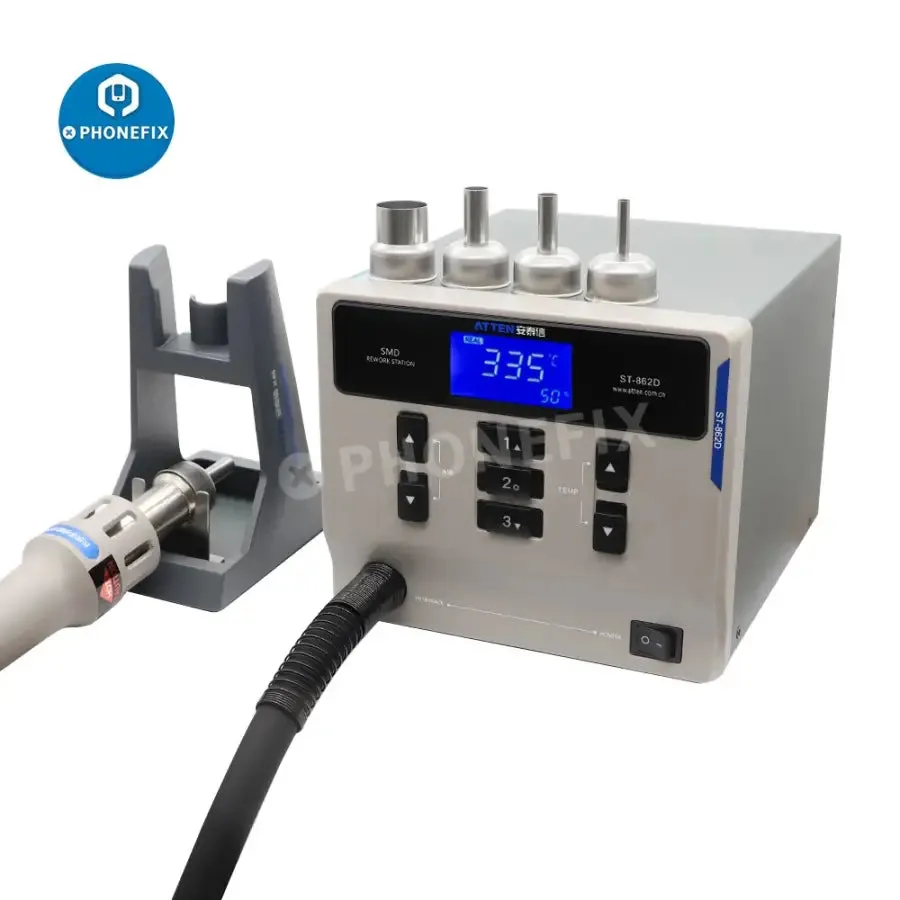

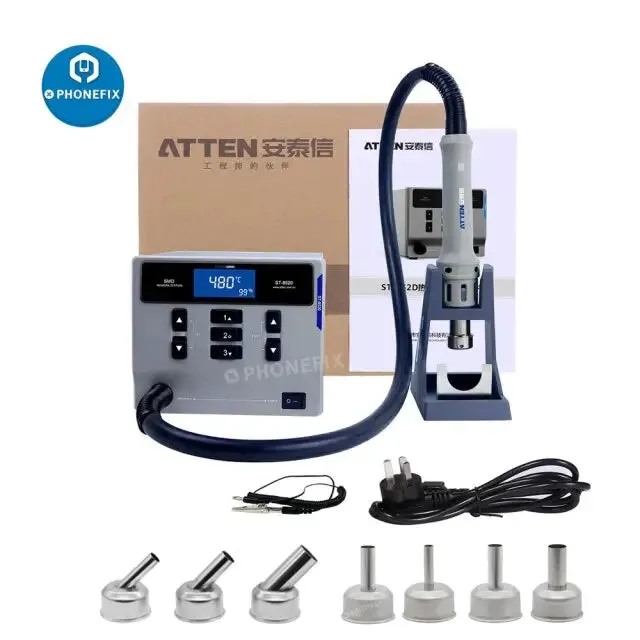

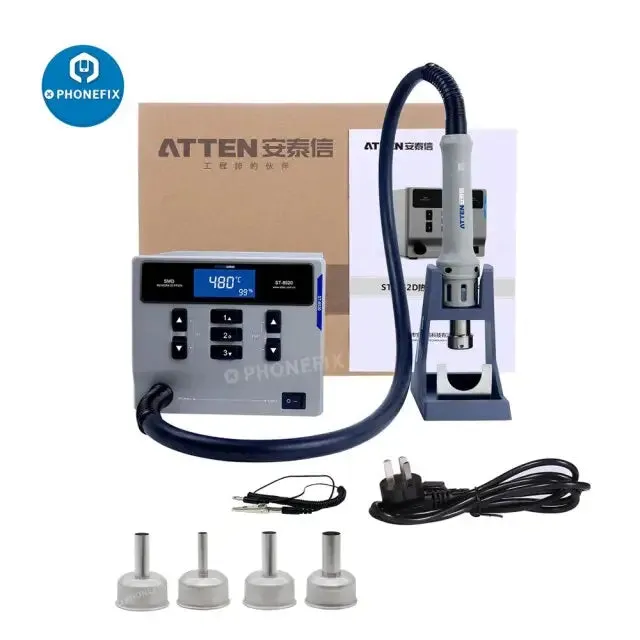

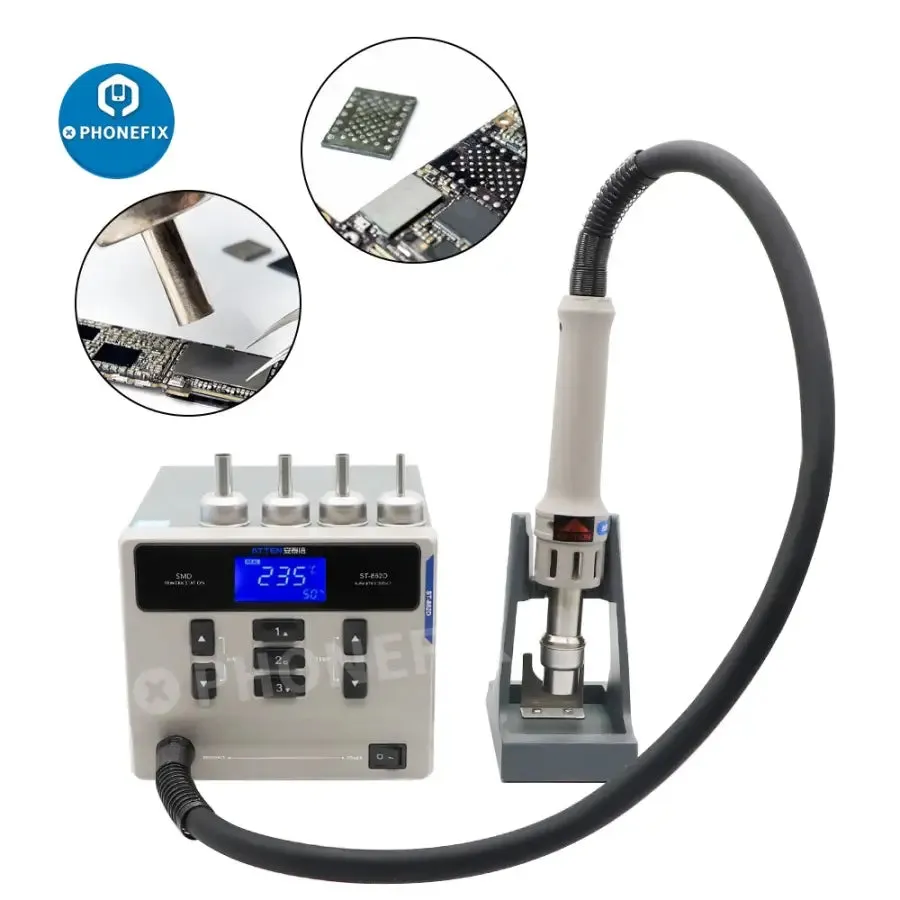

ATTEN ST862D Intelligent digital display rework station For PCB chip soldering repair, 1000W Whirlwind ATTEN ST-862D lead-free hot air gun soldering station, ATTEN ST-862D Hot Air Rework Station 1000W Whirlwind 20L-120L/Min.
Feature:

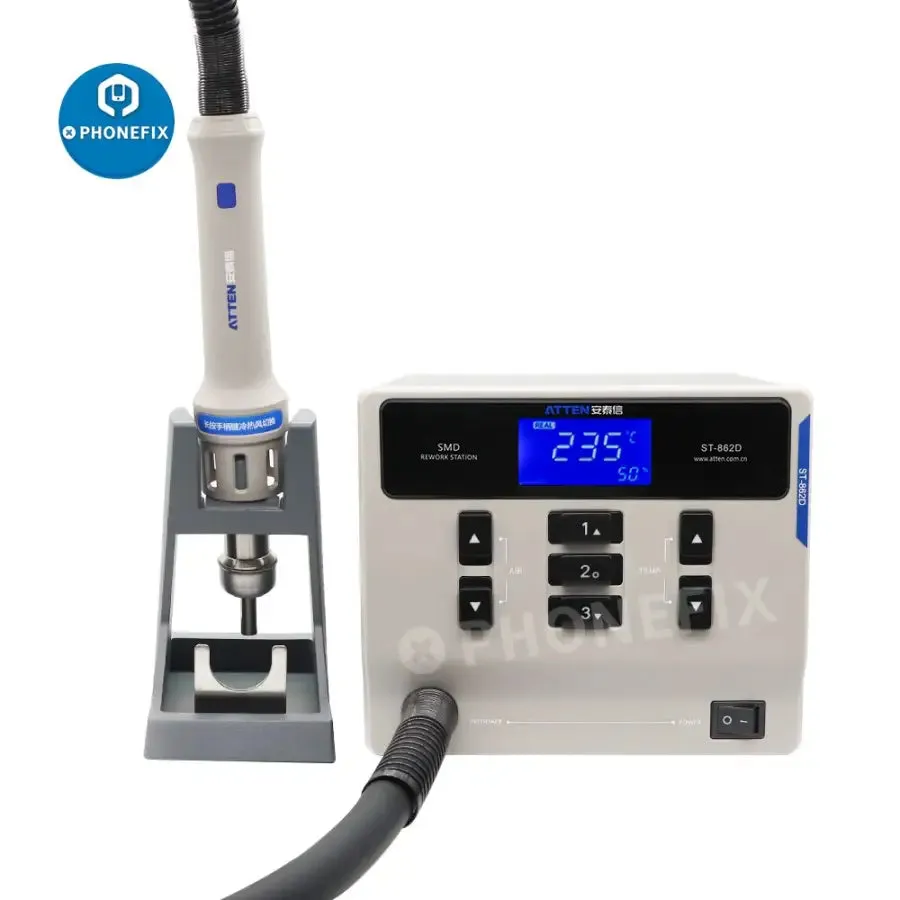

1. The LCD screen displays the operating temperature and status to achieve visual and human-machine interaction.
2. Menu-style operation, three sets of fast temperature / air volume access keys to achieve common temperature fast switching, 100 ° C -480 ° C.
3. Strong airflow with brushless fans.
4. Plug-in heating chip replacement is fast.

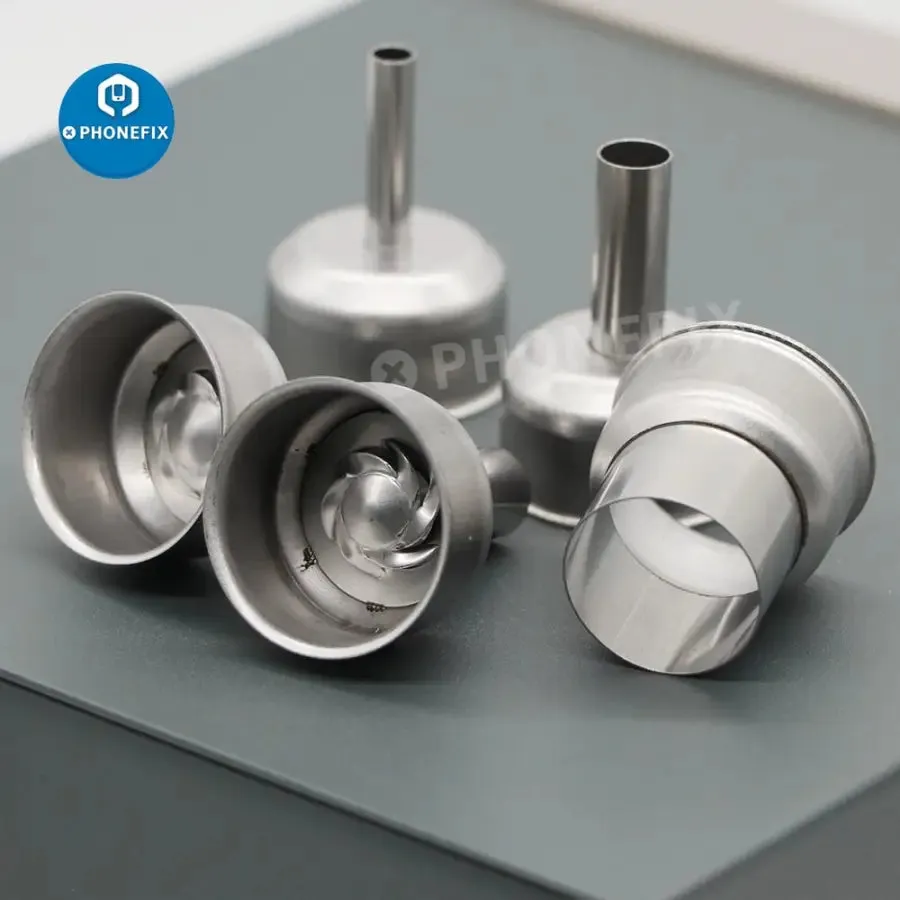

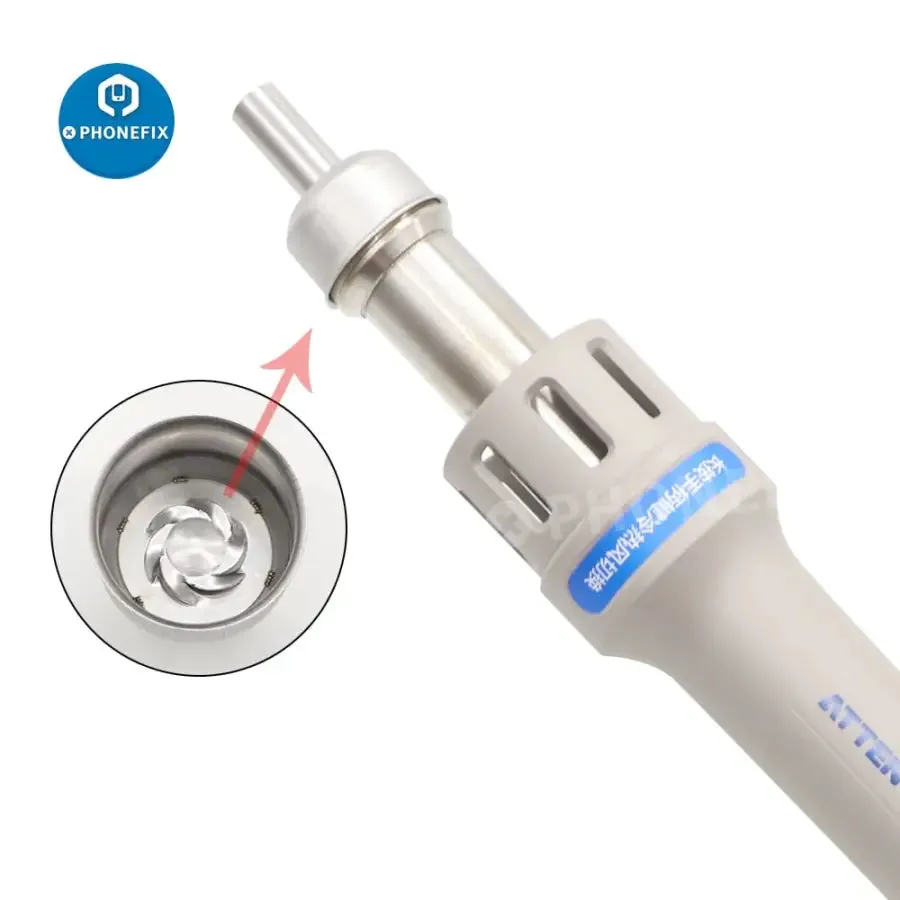

5. Straight wind and spiral wind convertible.
6. Automatic sleep.
7. Temperature lock function, timed work function.
8. Software calibration temperature control function, temperature compensation, to achieve constant temperature work.
Input Voltage : 220V / 110V.
Power: 1000W.
Temperature Range: 100~480℃.
Maximum Air Flow:120L/min.
Function:
1: Three regular channels are "1", "2" and "3". Each channel's parameters including temperature and airflow can be set.

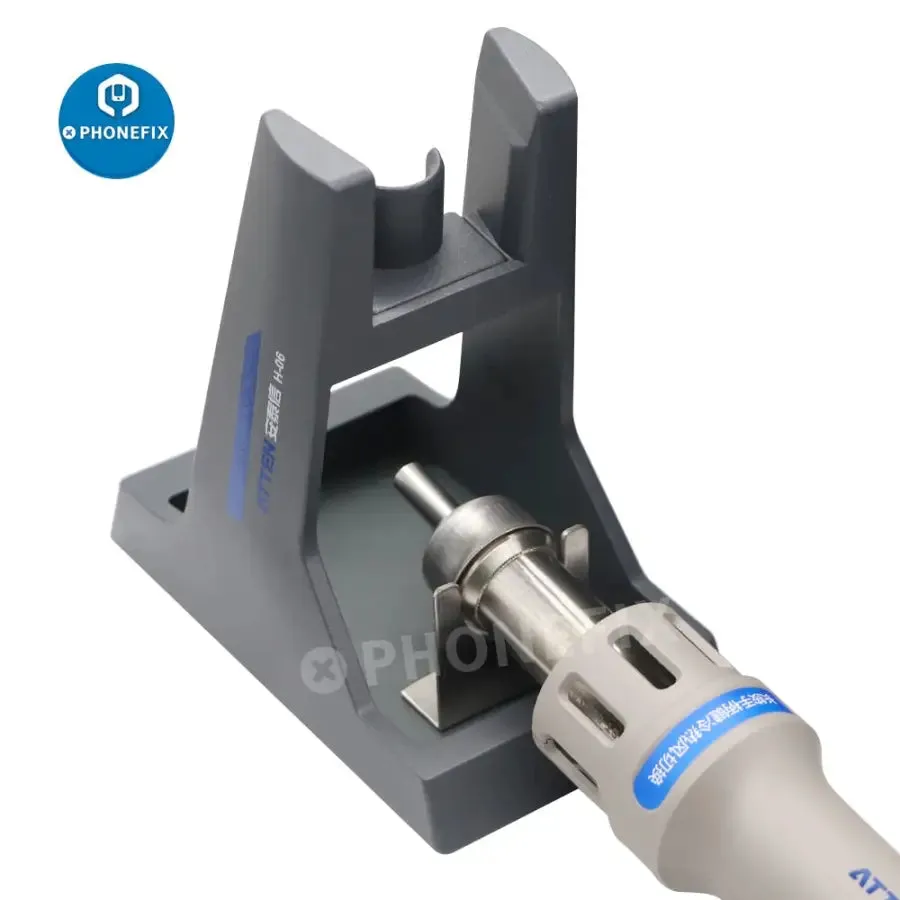

2: Real time operation by the magnetic switch. It will Cooling status when the handle is placed on holder, When the temperature drops to 100 degrees Celsius into sleep mode.
3: Auto sleeping function. Parameters can be set in sleeping state.
4: Closed loop sensor. Temperature can be controlled by zero voltage triggering modes, and adjusted conveniently, accurate and stable, not affected by airflow.
5: Large power, rapid heating.
6: A multipurpose unit, having brushless whirlpool motor, wide range.
7: An automatic cooling system can prolong the life time of heating element and protect the handle.
net weight: 4.35kg
size: 19X35X30cm
